2N5823, 2N5822 - COMPLEMENTARY SILICON TRANSISTOR

2N5823 Description

2N5822 NPN 2N5823 PNP COMPLEMENTARY SILICON TRANSISTORS w w w.c e n t r a l s e m i .c o m .
The CENTRAL SEMICONDUCTOR 2N5822 and 2N5823 are epoxy molded complementary silicon small signal transistors manufactured by the epitaxial planar proc.

2N5823 Applications

* where a high collector current rating is required. TO-92-18R CASE MARKING: FULL PART NUMBER MAXIMUM RATINGS: (TA=25°C unless otherwise noted) SYMBOL Collector-Base Voltage VCBO Collector-Emitter Voltage VCES Collector-Emitter Voltage VCEO Emitter-Base Voltage VEBO Continuous Collector Cu

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2N5823, 2N5822. Please refer to the document for exact specifications by model.

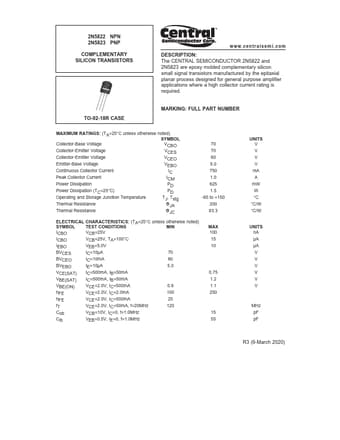

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2N5823, 2N5822
Manufacturer
Central Semiconductor ↗
File Size
317.64 KB
Datasheet
2N5822-CentralSemiconductor.pdf
Description
COMPLEMENTARY SILICON TRANSISTOR
Note
This datasheet PDF includes multiple part numbers: 2N5823, 2N5822.
Please refer to the document for exact specifications by model.
