2N5805 Datasheet, Transistors, RCA

2N5805 Features

  • Transistors JEDEC TO-3 .. Power dissipation (PT) = 110 W at SO V
  • High-voltage ratings: VCEO(sus) = 300 V max. (2NS80S) = 22S V max: (2NS804) a Maximum-operating-area curves. .for selec

PDF File Details

Part number:

2N5805

Manufacturer:

RCA

File Size:

327.19kb

Download:

📄 Datasheet

Description:

Power transistors.

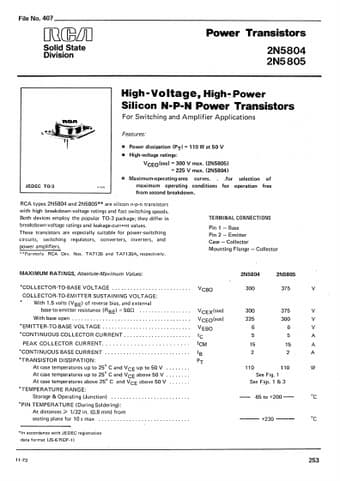

Datasheet Preview: 2N5805 📥 Download PDF (327.19kb)
Page 2 of 2N5805 Page 3 of 2N5805

2N5805 Application

  • Applications Features: JEDEC TO-3 .. Power dissipation (PT) = 110 W at SO V
  • High-voltage ratings: VCEO(sus) = 300 V max. (2NS80S) = 22S
