CMSZ5237B, CMSZ5221B, SURFACE MOUNT SILICON ZENER DIODE

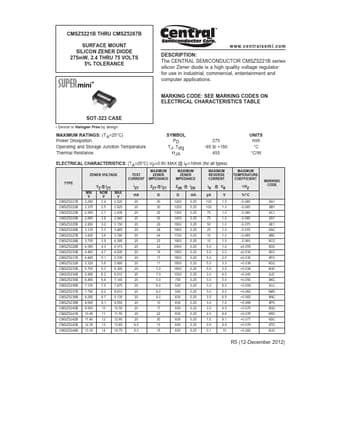

CMSZ5221B THRU CMSZ5267B SURFACE MOUNT SILICON ZENER DIODE 275mW, 2.4 THRU 75 VOLTS 5% TOLERANCE w w w.c e n t r a l s e m i .c o m .
The CENTRAL SEMICONDUCTOR CMSZ5221B series silicon Zener diode is a high quality voltage regulator for use in industrial, commercial, entertainment a.

CMSZ5221B-CentralSemiconductor.pdf

CMSZ5237B Datasheet Preview — This datasheet PDF includes multiple part numbers: CMSZ5237B, CMSZ5221B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CMSZ5237B, CMSZ5221B

Manufacturer:

Central Semiconductor ↗

File Size:

232.48 KB

Description:

SURFACE MOUNT SILICON ZENER DIODE

Note:

This datasheet PDF includes multiple part numbers: CMSZ5237B, CMSZ5221B.
Please refer to the document for exact specifications by model.

Applications

* MARKING CODE: SEE MARKING CODES ON ELECTRICAL CHARACTERISTICS TABLE SOT-323 CASE
* Device is Halogen Free by design MAXIMUM RATINGS: (TA=25°C) Power Dissipation Operating and Storage Junction Temperature Thermal Reistance SYMBOL PD TJ, Tstg ΘJA 275 -65 to +150 455 UNITS mW °C °C/W E
