CTDD1105SF-S Datasheet - Central Technologies

CTDD1105SF-S DC/DC Converters

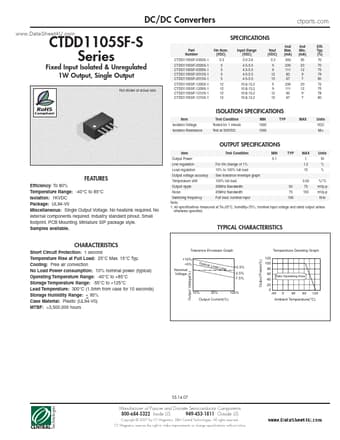

DC/DC Converters www.DataSheet4U.com ctparts.com SPECIFICATIONS Fixed Input Isolated & Unregulated 1W Output, Single Output Not shown at actual size. CTDD1105SF-S Series Part Number CTDD1105SF-0303S-1 CTDD1105SF-0505S-1 CTDD1105SF-0509S-1 CTDD1105SF-0512S-1 CTDD1105SF-0515S-1 CTDD1105SF-1205S-1 CTDD1105SF-1209S-1 CTDD1105SF-1212S-1 CTDD1105SF-1215S-1 Vin Nom. (VDC) 3.3 5 5 5 5 12 12 12 12 Input Range (VDC) 3.0-3.6 4.5-5.5 4.5-5.5 4.5-5.5 4.5-5.5 10.8-13.2 10.8-13.2 10.8-13.2 10.8-13.2 Vou.

CTDD1105SF-S Features

* Efficiency: To 80% Temperature Range: -40°C to 85°C Isolation: 1KVDC Package: UL94-V0 Miscellaneous: Single Output Voltage. No heatsink required. No external components required. Industry standard pinout. Small footprint. PCB Mounting. Miniature SIP package style. Samples available. Note: 1. All sp
