CTDD1207MF-S DC/DC Converters

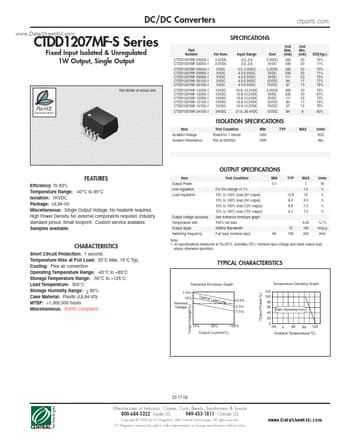

DC/DC Converters www.DataSheet4U.com ctparts.com SPECIFICATIONS CTDD1207MF-S Series Fixed Input Isolated & Unregulated 1W Output, Single Output Part Number CTDD1207MF-0303S-1 CTDD1207MF-0305S-1 CTDD1207MF-0503S-1 CTDD1207MF-0505S-1 CTDD1207MF-0509S-1 CTDD1207MF-0512S-1 CTDD1207MF-0515S-1 Vin Nom. 3.3VDC 3.3VDC 5VDC 5VDC 5VDC 5VDC 5VDC 12VDC 12VDC 12VDC 12VDC 12VDC 24VDC Input Range 3.0~3.6 3.0~3.6 4.5~5.5VDC 4.5-5.5VDC 4.5-5.5VDC 4.5-5.5VDC 4.5-5.5VDC 10.8~13.2VDC 10.8-13.2VDC 10.8-13.2VDC .

CTDD1207MF-S Features

* Efficiency: To 83% Temperature Range: -40°C to 85°C Isolation: 1KVDC Package: UL94-V0 Miscellaneous: Single Output Voltage. No heatsink required. High Power Density. No external components required. Industry standard pinout. Small footprint. Custom service available. Samples available. Item Output P
