CTD27GK16 Thyristor-Diode Modules

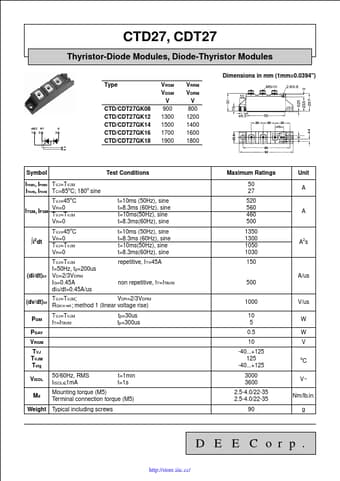

CTD27, CDT27 Thyristor-Diode Modules, Diode-Thyristor Modules Type CTD/CDT27GK08 CTD/CDT27GK12 CTD/CDT27GK14 CTD/CDT27GK16 CTD/CDT27GK18 VRSM VDSM V 900 1300 1500 1700 1900 VRRM VDRM V 800 1200 1400 1600 1800 Dimensions in mm (1mm=0.0394") Symbol Test Conditions I , ITRMS FRMS TVJ=TVJM I , ITAVM FAVM TC=85oC; 180o sine TVJ=45oC ITSM, IFSM VR=0 TVJ=TVJM VR=0 TVJ=45oC i2dt VR=0 TVJ=TVJM VR=0 t=10ms (50Hz), sine t=8.3ms (60Hz), sine t=10ms(50Hz), sine t=8.3ms(60Hz), sine t=10ms (50H.

CTD27GK16 Features

* International standard package

* Direct copper bonded Al2O3-ceramic base plate

* Planar passivated chips

* Isolation voltage 3600 V~

* UL registered, E 72873

* Gate-cathode twin pins for version 1 APPLICATIONS

* DC motor control

* Softstart AC motor controller
