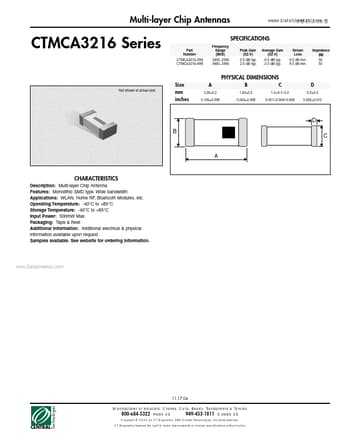

Multi-layer Chip Antennas ctparts.com SPECIFICATIONS CTMCA3216 Series Not shown at actual size.
Part Number CTMCA3216-2R4 CTMCA3216-4R9 Frequency Range (MHz) 2400~2500 4900~5900 Peak Gain (XZ-V) 0.5 dBi typ.
2.0 dBi typ.
Average Gain (XZ-V) -0.5 dBi typ.
-2.5 dBi typ.
Return Loss 9.5 dB min.
9.5 dB min.
Impedance (Ω) 50 50 PHYSICAL DIMENSIONS Size mm inches A 3.20±0.2 0.126±0.008 B 1.60±0.2 0.063±0.008 C 1.3+0.1/-0.2 0.051+0.004/-0.008 D 0.5±0.3 0.020±0.012 D B C A CHARACTERISTICS
CTMCA3216 Features
* Monolithic SMD type. Wide bandwidth Applications: WLAN, Home RF, Bluetooth Modules, etc. Operating Temperature: -40°C to +85°C Storage Temperature: -40°C to +85°C Input Power: 500mW Max. Packaging: Tape & Reel Additional Information: Additional electrical & physical information available upon reque
