CTMC1210 Datasheet - Central Technologies

CTMC1210 Wire-wound Chip Inductors

Ferrite core, wire-wound molded chip inductor Applications: TVs, VCRs, disk drives, computer peripherals, telecommunication devices and electronic control boards for automobiles Operating Temperature: -40°C to +100°C Inductance Tolerance: ±5%, ±10% & ±20% Testing: Inductance and Q are tested on a H.
Wire-wound Chip Inductors - Molded ctparts.com CTMC1210 Series From .01 µH to 330 µH ENGINEERING KIT # 12F Not shown at actual size. Part Number SPECIFICATIONS Please specify tolerance code when ordering. CTMC1210-R010_ J = ±5%, K = ±10%, M = ±20% CTMC1210F Please specify “F” for Lead Free Inductance (µH) .010 .012 .015 .018 .022 .027 .033 .039 .047 .056 .068 .082 .10 .12 .15 .18 .22 .27 .33 .39 .47 .56 .68 .82 1.0 1.2 1.5 1.8 2.2 2.7 3.3 3.9 4.7 5.6 6.8 8.2 10 12 15 18 22 27 33 39 47 56 68 8.

CTMC1210 Datasheet (215.71 KB)

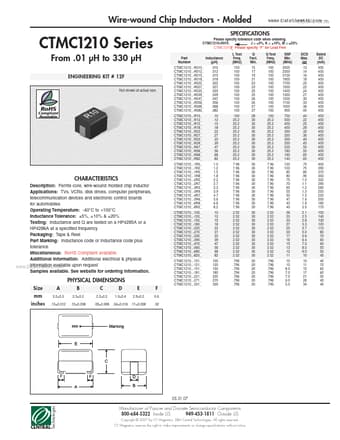

Preview of CTMC1210 PDF

Datasheet Details

Part number:

CTMC1210

Manufacturer:

Central Technologies

File Size:

215.71 KB

Description:

Wire-wound chip inductors.
