CTMC2220F Wire-wound Chip Inductors

Ferrite core, wire-wound molded chip inductor Applications: TV’s, VCR’s, disk drives, computer peripherals, telecommunication devices and electronic control boards for automobiles Operating Temperature: -25°C to +85°C Inductance Tolerance: ±5%, ±10% Testing: Inductance and Q are tested on an HP4285.

Wire-wound Chip Inductors - Molded ctparts.com CTMC2220F Series From 1,200 µH to 10,000 µH Part Number CTMC2220F-122_ CTMC2220F-152_ CTMC2220F-182_ CTMC2220F-222_ CTMC2220F-272_ CTMC2220F-332_ CTMC2220F-392_ CTMC2220F-472_ CTMC2220F-562_ CTMC2220F-682_ CTMC2220F-822_ CTMC2220F-103_ Not shown at actual size. SPECIFICATIONS Please specify tolerance code when ordering. CTMC2220F-122_ J = ±5%, K = ±10% L Test Freq. (MHz) .252 .252 .252 .252 .252 .252 .252 .252 .252 .252 .252 .0796 Q Fact. Min. 20.

CTMC2220F Datasheet (227.34 KB)

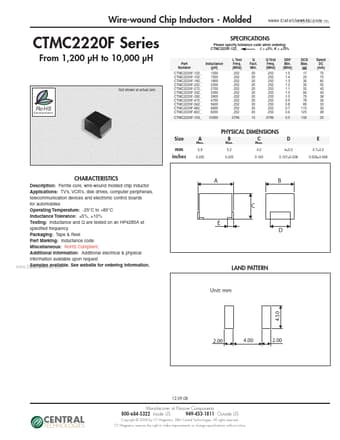

CTMC2220F Datasheet Preview — Preview of CTMC2220F PDF

Datasheet Details

Part number:

CTMC2220F

Manufacturer:

Central Technologies

File Size:

227.34 KB

Description:

Wire-wound chip inductors.
