US5KC, US5AC Datasheet - Chang Yin

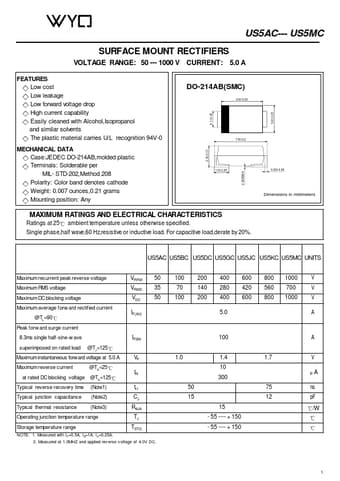

US5KC, US5AC, SURFACE MOUNT RECTIFIERS

US5AC *- US5MC SURFACE MOUNT RECTIFIERS VOLTAGE RANGE: 50 *- 1000 V CURRENT: 5.0 A .

datasheet Preview Page 1 from Datasheet4u.com

US5AC-ChangYin.pdf

US5KC Datasheet Preview — This datasheet PDF includes multiple part numbers: US5KC, US5AC. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

US5KC, US5AC

Manufacturer:

Chang Yin

File Size:

65.53 KB

Description:

SURFACE MOUNT RECTIFIERS

Note:

This datasheet PDF includes multiple part numbers: US5KC, US5AC.
Please refer to the document for exact specifications by model.

Features

* Low cost Low leakage Low forward voltage drop High current capability Easily cleaned with Alcohol,Isopropanol and similar solvents The plastic material carries U/L recognition 94V-0 MECHANICAL DATA Case:JEDEC DO-214AB,molded plastic Terminals: Solderable per MIL- STD-202,Method 208 Polarity: Color b
