uS5650Q

ADC Prefilter

uS5650Q Features

* 4 Differential to Single-Ended Trans-Conductance Amplifier 2

* 4-to-1 (1 for Bus, 1 for Shunt) Analog Multiplexer with Single Bit for MUX Select Single-Ended to Differential Converter with Buffered Input Reference Voltages Strap Selectable to Operate the Device by Itself or in a Pair Enable Input

uS5650Q General Description

The uS5650Q is a 4-Channel Analog prefilter and Multiplexer. This 4 channel device is intended to condition single and differential signals at bus voltages to a range appropriate for sampling with a low voltage ADC. Power supply operates from 2.8V to 3.8V. Ordering Information Order Number uS5650QQ.

uS5650Q Datasheet (201.76 KB)

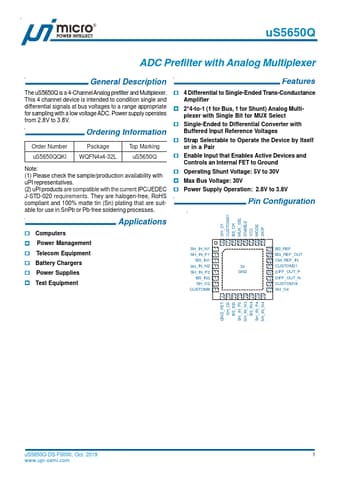

Preview of uS5650Q PDF

Datasheet Details

Part number:

uS5650Q

Manufacturer:

uPI Semiconductor

File Size:

201.76 KB

Description:

Adc prefilter.
