uS5651P - ADC Prefilter

Product Overview

uPI Semiconductor

Datasheet Details

Part number	uS5651P
Manufacturer	uPI Semiconductor
File Size	1.23 MB
Description	ADC Prefilter
Datasheet	uS5651P Datasheet

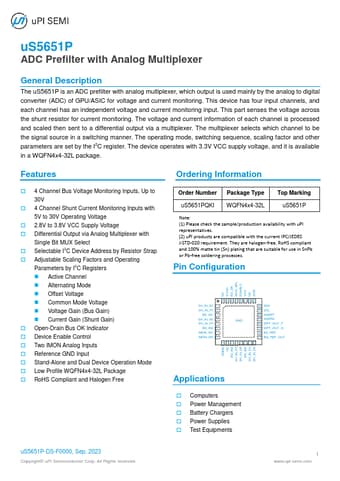

Additional preview pages of the uS5651P datasheet.

Product details

Description

The uS5651P is an ADC prefilter with analog multiplexer, which output is used mainly by the analog to digital converter (ADC) of GPU/ASIC for voltage and current monitoring.

Features

Ordering Information  4 Channel Bus Voltage Monitoring Inputs, Up to 30V  4 Channel Shunt Current Monitoring Inputs with 5V to 30V Operating Voltage  2.8V to 3.8V VCC Supply Voltage  Differential Output via Analog Multiplexer with Single Bit MUX Select  Selectable I2C Device Address by Resistor Strap  Adjustable Scaling Factors and Operating Parameters by I2C Registers.
Active Channel.
Alternating Mode.
Offset Voltage.
Common Mode Voltage.
Voltage Gain (Bus Gain).
