US5B - Ultra Fast Rectifier

Product Overview

MCC

📥 Download Datasheet

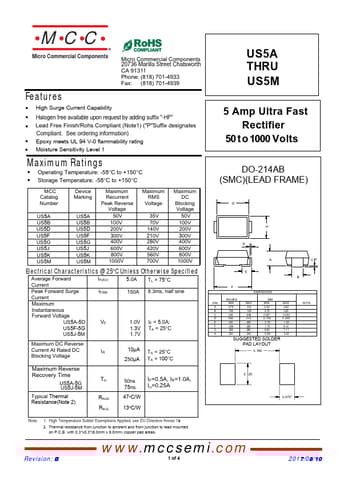

US5B Ultra Fast Rectifier by MCC - Datasheet Preview — Datasheet preview – US5B

Datasheet Details

Part number	US5B
Manufacturer	MCC
File Size	660.30 KB
Description	Ultra Fast Rectifier
Datasheet	US5B Datasheet
Note	This datasheet PDF includes multiple part numbers: US5B, US5A. Please refer to the document for exact specifications by model.
Additional preview pages of the US5B datasheet.

Product details

Features

High Surge Current Capability.
Halogen free available upon request by adding suffix "-HF".
Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information).
Epoxy meets UL 94 V-0 flammability rating.
Moisture Sensitivity Level 1 Maximum Ratings.
Operating Temperature: -55°C to +150°C.
Storage Temperature: -55°C to +150°C MCC Catalog Number US5A US5B US5D US5F US5G US5J US5K US5M Device Marking U.
