RC0512, RC0508 - Leaded RF Chokes

Chilisin

Datasheet Details

Part number	RC0512, RC0508
Manufacturer	Chilisin
File Size	132.60 KB
Description	Leaded RF Chokes
Datasheet	RC0508-Chilisin.pdf
Note	This datasheet PDF includes multiple part numbers: RC0512, RC0508. Please refer to the document for exact specifications by model.

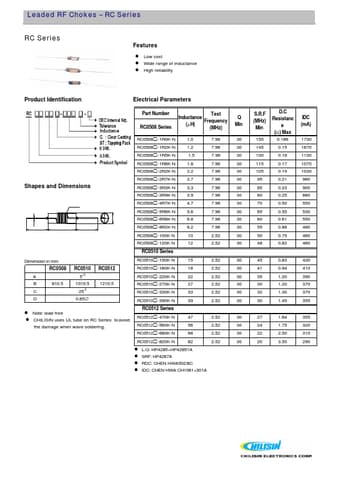

l l l Low cost Wide range of inductance High reliability Product Identification Electrical Parameters Part Number RC0508 Series RC0508£-1R0K-N RC0508£-1R2K-N RC0508£-1R5K-N RC0508£-1R8K-N RC0508£-2R2K-N RC0508£-2R7K-N Test Inductance Frequency ( µ H) (MHz) 1.0 1.2 1.5 1.8 2.2 2.7 3.3 3.9 4.7 5.6 6.8 8.2 10 12 7.96 7.96 7.96 7.96 7.96 7.96 7.96 7.96 7.96 7.96 7.96 7.96 2.52 2.52 Q Min 30 30 30 30 30 30 30 30 30 30 30 30 30 30 S. R. F (MHz) Min 155 145 130 115 105 95 85 80 70 65 60 55 50 48 D. C Re.
