CSS-1815A9

(CSS-1814A9 / CSS-1815A9) Digit Display

CSS-1815A9 Features

* 1. 1.80 inch (45.0mm) digit height. 2. Case mold type. 3. RoHS compliant. 4. Low power consumption. 5. Easy mounting on P.C. board or socket. Device Selection Guide Chip Material AlGaInP AlGaInP Emitted Color Super Bright Amber Part No. CSS-1814A9 CSS-1815A9 Mechanical Dimensions - Description Co

CSS-1815A9 General Description

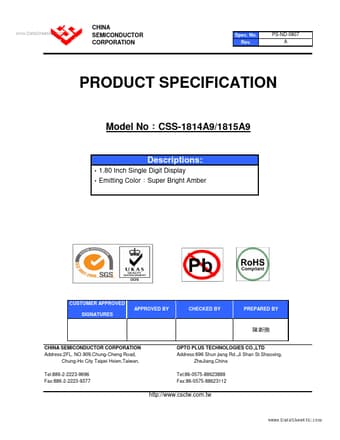

: 1.80 Inch Single Digit Display Emitting Color Super Bright Amber CUSTOMER APPROVED SIGNATURES APPROVED BY CHECKED BY PREPARED BY CHINA SEMICONDUCTOR CORPORATION Address:2FL. NO.909,Chung-Cheng Road, Chung-Ho City Taipei Hsien,Taiwan. Tel:886-2-2223-9696 Fax:886-2-2223-9377 OPTO PLUS TECHNOLO.

CSS-1815A9 Datasheet (220.19 KB)

Preview of CSS-1815A9 PDF

Datasheet Details

Part number:

CSS-1815A9

Manufacturer:

China Semiconductor Corporation

File Size:

220.19 KB

Description:

(css-1814a9 / css-1815a9) digit display.
