CSS-1815M9 Datasheet, Display, China Semiconductor Corporation

CSS-1815M9 Features

  • Display 1. 1.80 inch (45.0mm) digit height. 2. Case mold type. 3. RoHS compliant. 4. Low power consumption. 5. Easy mounting on P.C. board or socket. Device Selection Guide Chip Material AlGaI

PDF File Details

Part number:

CSS-1815M9

Manufacturer:

China Semiconductor Corporation

File Size:

222.84kb

Download:

📄 Datasheet

Description:

(css-1814m9 / css-1815m9) digit display. : 1.80 Inch Single Digit Display Emitting Color Super Bright Green CUSTOMER APPROVED SIGNATURES APPROVED BY CHECKED BY PREPARED B

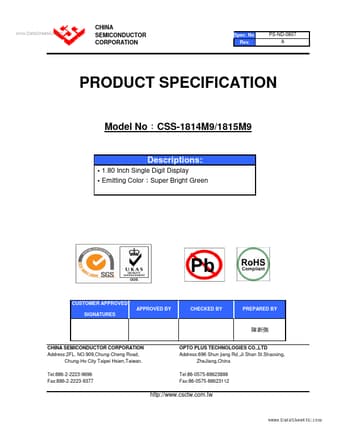

Datasheet Preview: CSS-1815M9 📥 Download PDF (222.84kb)
Page 2 of CSS-1815M9 Page 3 of CSS-1815M9
