CSD-822M9

(CSD-822M9 / CSD-823M9) Digits Display

CSD-822M9 Features

* 1. 0.8 inch (20.3mm) digit height. 2. Case mold type. 3. RoHs compliant. 4. Low power consumption. 5. Easy mounting on P.C. board or socket. Device Selection Guide Chip Material AlGaInP AlGaInP Emitted Color Super Bright Green Super Bright Green Part No. CSD-822M9 CSD-823M9 Description Common Ano

CSD-822M9 General Description

: 0.8 Inch Dual Digits Display CSD-822: Common Anode CSD-823: Common Cathode Emitting Color Super Bright Green www.DataSheet.co.kr CUSTOMER APPROVED SIGNATURES APPROVED BY CHECKED BY PREPARED BY CHINA SEMICONDUCTOR CORPORATION Address:2FL. NO.909,Chung-Cheng Road, Chung-Ho City Taipei Hsien,Ta.

CSD-822M9 Datasheet (234.19 KB)

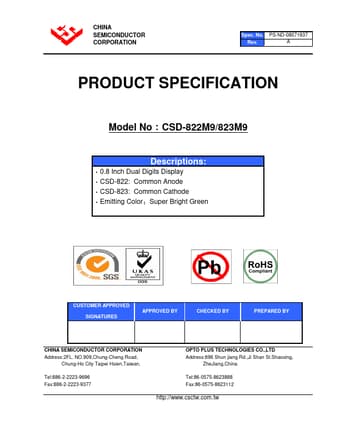

Preview of CSD-822M9 PDF

Datasheet Details

Part number:

CSD-822M9

Manufacturer:

China Semiconductor

File Size:

234.19 KB

Description:

(csd-822m9 / csd-823m9) digits display.
