CSD-822S

(CSD-822S / CSD-823S) Digits Display

CSD-822S Features

* 1. 0.8 inch (20.3mm) dight height. 2. Case mold type. 3. RoHs compliant. 4. Low power consumption. 5. Easy mounting on P.C. board or socket. Device Selection Guide Chip Material AlGaAs AlGaAs Emitted Color Super Bright Red Super Bright Red Part No. CSD-822S CSD-823S Description Common Anode Commo

CSD-822S General Description

: 0.8 Inch Dual Digits Display CSD-822: Common Anode CSD-823: Common Cathode Emitting Color Super Bright Red www.DataSheet.co.kr CUSTOMER APPROVED SIGNATURES APPROVED BY CHECKED BY PREPARED BY CHINA SEMICONDUCTOR CORPORATION Address:2FL. NO.909,Chung-Cheng Road, Chung-Ho City Taipei Hsien,Taiw.

CSD-822S Datasheet (233.86 KB)

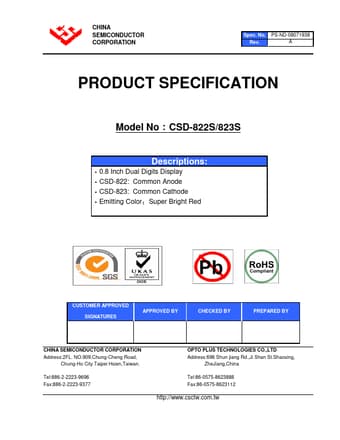

Preview of CSD-822S PDF

Datasheet Details

Part number:

CSD-822S

Manufacturer:

China Semiconductor

File Size:

233.86 KB

Description:

(csd-822s / csd-823s) digits display.
