CEP6036, CEP6036-Chino Datasheet - Chino-Excel Technology

CEP6036 N-Channel MOSFET

CEP6036 Features

* 60V, 135A, RDS(ON) = 4.6mΩ @VGS = 10V. Super high dense cell design for extremely low RDS(ON). High power and current handing capability. Lead-free plating ; RoHS compliant. TO-220 & TO-263 package. D D G S CEB SERIES TO-263(DD-PAK) G D S CEP SERIES TO-220 G S ABSOLUTE MAXIMUM RATINGS Tc = 25

CEP6036-Chino-ExcelTechnology.pdf

This datasheet PDF includes multiple part numbers: CEP6036, CEP6036-Chino. Please refer to the document for exact specifications by model.

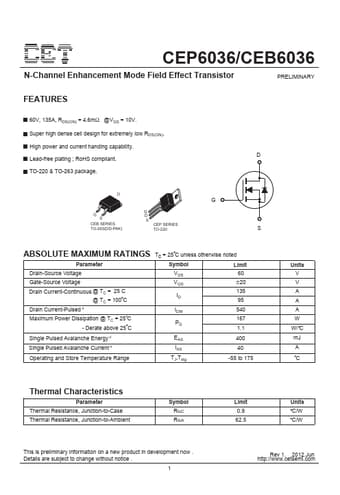

CEP6036 Datasheet Preview Page 2 CEP6036 Datasheet Preview Page 3

Datasheet Details

Part number:

CEP6036, CEP6036-Chino

Manufacturer:

Chino-Excel Technology

File Size:

419.16 KB

Description:

N-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: CEP6036, CEP6036-Chino.
Please refer to the document for exact specifications by model.
