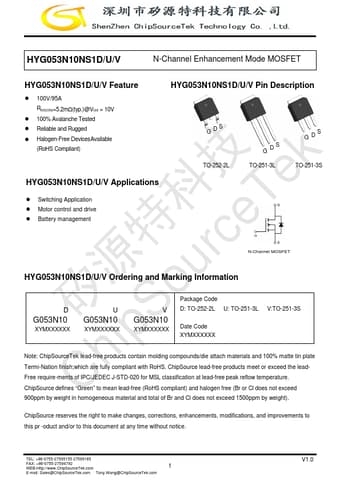

HYG053N10NS1V Datasheet, MOSFET, ChipSourceTek

PDF File Details

Part number:

HYG053N10NS1V

Manufacturer:

ChipSourceTek

File Size:

586.95kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

100V/95A RDS(ON)=5.2mΩ(typ.)@VGS = 10V

100% Avalanche Tested

Reliable and Rugged

Halogen-

HYG053N10NS1V Application

• Applications
• Switching Application T
• Motor control and drive
• Battery management G DS TO-252-2L G DS TO-251-3L G DS
