TX7022H - Low Power Voltage Detector

ChipSourceTek

📥 Download Datasheet

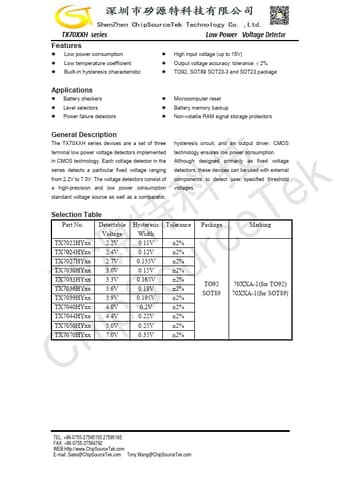

TX7022H Datasheet Preview — Preview of TX7022H PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TX7022H
Manufacturer	ChipSourceTek
File Size	882.80 KB
Description	Low Power Voltage Detector
Datasheet	TX7022H-ChipSourceTek.pdf

TX7022H Product details

Description

The TX70XXH series devices are a set of three hysteresis circuit, and an output driver.

Features

l Low power consumption l Low temperature coefficient l Built-in hysteresis characteristic Low Power Voltage Detector l High input voltage (up to 15V) l Output voltage accuracy: tolerance ±2% l TO92, SOT89 SOT23-3 and SOT23 package.
