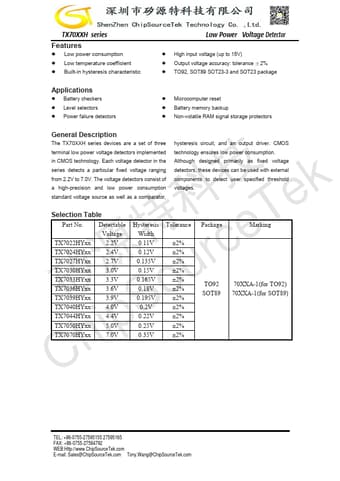

TX7030H Low Power Voltage Detector

The TX70XXH series devices are a set of three hysteresis circuit, and an output driver. CMOS terminal low power voltage detectors implemented technology ensures low power consumption. in CMOS technology. Each voltage detector in the series detects a particular fixed voltage ranging from 2.2V to 7.

TX7030H Features

* l Low power consumption l Low temperature coefficient l Built-in hysteresis characteristic Low Power Voltage Detector l High input voltage (up to 15V) l Output voltage accuracy: tolerance ±2% l TO92, SOT89 SOT23-3 and SOT23 package Applications l Battery checkers l Level selectors l Power failure
