TX7525H - 150mA Low Power LDO

ChipSourceTek

📥 Download Datasheet

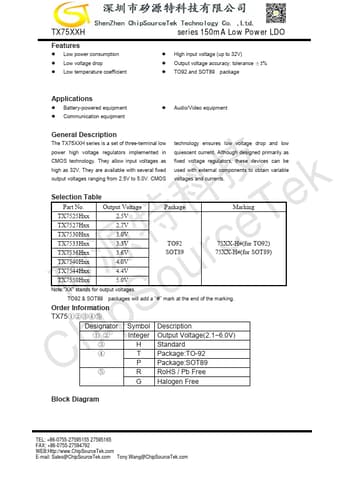

TX7525H Datasheet Preview — Preview of TX7525H PDF

Datasheet Details

Part number: TX7525H
Manufacturer: ChipSourceTek
File Size: 1.12 MB
Datasheet: TX7525H-ChipSourceTek.pdf
Description: 150mA Low Power LDO

TX7525H Product details

Description

The TX75XXH series is a set of three-terminal low technology ensures low voltage drop and low power high voltage regulators implemented in quiescent current.Although designed primarily as CMOS technology.They allow input voltages as high as 32V.They are available with several fixed output voltages ranging from 2.5V to 5.0V.CMOS fixed voltage regulators, these devices can be used with external components to obtain variable voltages and currents.k Selection Table e PartNo.Output Vol

Features

l Low power consumption l Low voltage drop l Low temperature coefficient series 150mA Low Power LDO l High input voltage (up to 32V) l Output voltage accuracy: tolerance ±3% l TO92 and SOT89 package.
