TX7533S Datasheet - ChipSourceTek

3-terminal low power high voltage regulator

TX7533S General Description

The TX75XXS series is a set of three-terminal low technology ensures low voltage drop and low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 37V. They are available with several fixed output voltages ranging from 3.0V to 5.0V. CMOS quiescent cu.

TX7533S Datasheet (506.12 KB)

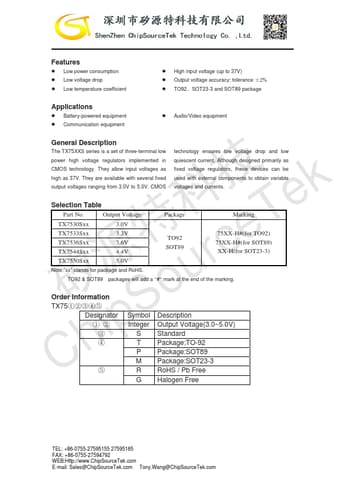

Preview of TX7533S PDF

Datasheet Details

Part number:

TX7533S

Manufacturer:

ChipSourceTek

File Size:

506.12 KB

Description:

3-terminal low power high voltage regulator.
