TX7536S

3-terminal low power high voltage regulator

ChipSourceTek

TX7536S Features

* z Low power consumption z Low voltage drop z Low temperature coefficient z High input voltage (up to 37V) z Output voltage accuracy: tolerance ±2% z TO92、SOT23-3 and SOT89 package Applications z Battery-powered equipment z Communication equipment z Audio/Video equipment General Description The

TX7536S General Description

The TX75XXS series is a set of three-terminal low technology ensures low voltage drop and low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 37V. They are available with several fixed output voltages ranging from 3.0V to 5.0V. CMOS quiescent cu.

TX7536S Datasheet (506.12 KB)

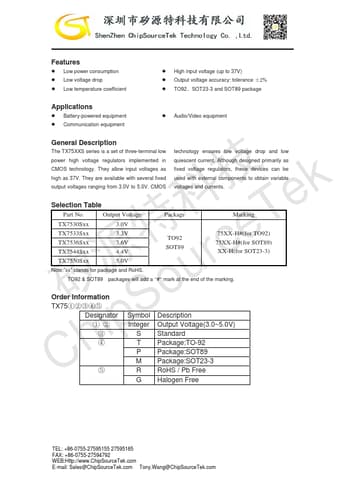

TX7536S Datasheet Preview — Preview of TX7536S PDF

Datasheet Details

Part number:

TX7536S

Manufacturer:

ChipSourceTek

File Size:

506.12 KB

Description:

3-terminal low power high voltage regulator.
