CA-IF1021 - Automotive LIN Transceiver

Chipanalog

CA-IF1021 Description

Shanghai Chipanalog Microelectronics Co., Ltd.CA-IF1021 Version 1.01, 2022/06/29 CA-IF1021 Automotive LIN Transceiver with Inhibit and Wake-up 1..
The CA-IF1021x-Q1 family of device is Local Interconnect Network (LIN) transceiver with integrated wake-up and protection features for automotive appl.

CA-IF1021 Features

* Meets LIN2.0、LIN2.1、LIN2.2、LIN2.2A and ISO 17987-4:2016(12V) Physical-layer (EPL) Standards
* Compliant to SAE J2602-1 and SAE J2602-2 LIN Physical-layer Specification

CA-IF1021 Applications

* with Wide Operating Supply Range:
* 5.5V to 27V supply range (VBAT)
* 3.3V and 5.0V Input Logic Compatible
* System-level Power Control via INH pin
* Power-up/down Glitch-free Operation on LIN bus and RXD output
* Integrated 30kΩ LIN pull-up Resistor
* Sup

📥 Download Datasheet

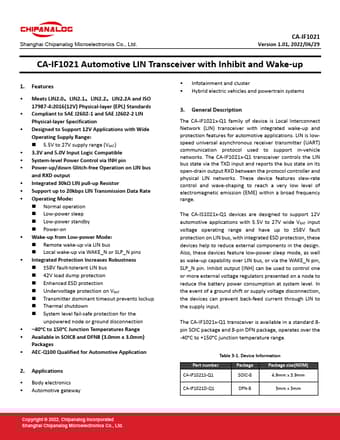

CA-IF1021 Datasheet Preview — Preview of CA-IF1021 PDF

Datasheet Details

Part number: CA-IF1021
Manufacturer: Chipanalog
File Size: 1.26 MB
Datasheet: CA-IF1021-Chipanalog.pdf
Description: Automotive LIN Transceiver
