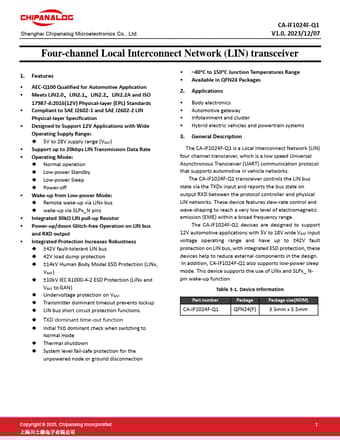

Part number: CA-IF1024F-Q1
Manufacturer: Chipanalog
File Size: 1.52MB
Download: 📄 Datasheet
Description: Four-channel Local Interconnect Network transceiver
* AEC-Q100 Qualified for Automotive Application
* Meets LIN2.0、LIN2.1、LIN2.2、LIN2.2A and ISO
17987-4:2016(12V) Physical-layer (EPL) Standards
* Compliant to S.
with Wide
Operating Supply Range:
* 5V to 28V supply range (VBAT)
* Support up to 20kbps LIN Transmission Data R.
The CA-IF1024F-Q1 is a Local Interconnect Network (LIN) four channel transceiver, which is a low speed Universal Asynchronous Transceiver (UART) communication protocol that supports automotive in vehicle networks.
The CA-IF1024F-Q1 transceiver contr.
