CS18HS02565

The CS18HS02565 is 32K-Word By 8 Bit High Speed SRAM designed by Chiplus.

Product Overview

Chiplus

Datasheet Details

Part number	CS18HS02565
Manufacturer	Chiplus
File Size	672.26 KB
Description	32K-Word By 8 Bit High Speed SRAM
Datasheet	CS18HS02565-Chiplus.pdf

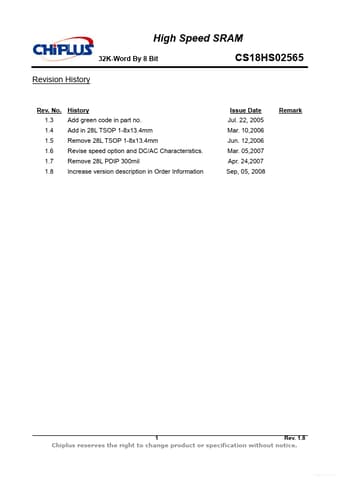

Additional preview pages of the CS18HS02565 datasheet.

Product details

Description

in Order Information Issue Date Jul.22, 2005 Mar.10,2006 Jun.12,2006 Mar.05,2007 Apr.24,2007 Sep, 05, 2008 Remark 1 Rev.1.8 Chiplus reserves the right to change product or specification without notice.Free Datasheet http://www.datasheet4u.net/ High Speed SRAM 32K-Word By 8 Bit CS18HS02565 DESCRIPTION The CS18HS02565 series products are 32,768-words by 8-bits static RAMs fabricated with advanced 8" wafer submicron CMOS technology.Using unique CMOS peripheral circuits and special po

Features

1. 2. 3. 4. 5. 6. 32,768-word x 8-bit organization Operation voltage: 4.5 ~ 5.5V Fully static operation: no clock or refreshing required LVTTL-compatible inputs and outputs Common I/O capability Low power consumption Active: 45/35 mA（Max. ） Standby: 350μA 7. 8. Very high speed access: 10/12 ns Output Enable ( OE ) available for very fast access Product Family Part No. Operating Temp Vcc. Range Speed (ns) 10 CS18HS02565 0~70oC 4.5~5.5V 12 35 Supply Current mA (Max. ) 45 28 SOP-330mil 28 SOJ-300mil.
