CS180N06A0 Datasheet, Mosfet, CR Micro

CS180N06A0 Features

  • Mosfet VDSS ID(Silicon limited current) PD(TC=25℃) RDS(ON)Typ 60 V 180 A 245 W 3.2 mΩ l Fast Switching l Low ON Resistance(Rdson≤4mΩ) l Low Gate Charge (Typical Data:86.2nC) l Low Reverse

PDF File Details

Part number:

CS180N06A0

Manufacturer:

CR Micro

File Size:

1.68MB

Download:

📄 Datasheet

Description:

Silicon n-channel power mosfet. CS180N06 A0, the silicon N-channel Enhanced VDMOSFETs, is obtained by advanced Trench Technology which reduce the conduction loss, i

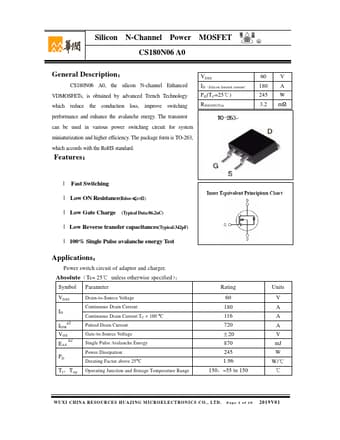

Datasheet Preview: CS180N06A0 📥 Download PDF (1.68MB)
Page 2 of CS180N06A0 Page 3 of CS180N06A0

CS180N06A0 Application

  • Applications Power switch circuit of adaptor and charger. Absolute(Tc= 25℃ unless otherwise specified): Symbol Parameter VDSS ID IDMa1 VGS EAS a

TAGS

CS180N06A0
Silicon
N-Channel
Power
MOSFET
CR Micro
