CS180N08A8

Silicon N-Channel Power MOSFET

CS180N08A8 Features

* l Fast Switching l Low ON Resistance(Rdson≤3.3mΩ) l Low Gate Charge l Low Reverse transfer capacitances l 100% Single Pulse avalanche energy Test Applications： Power switch circuit of adaptor and charger. VDSS ID（Silicon limited current） ID（Package limited） RDS(ON)Typ 80 V 180 A 120 A 2.6 mΩ Abs

CS180N08A8 General Description

CS180N08 A8, the silicon N-channel Enhanced VDMOSFETs, is obtained by the high density Trench technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. This device is suitable for use as a load switch and PWM applications. The package form is TO-22.

CS180N08A8 Datasheet (611.45 KB)

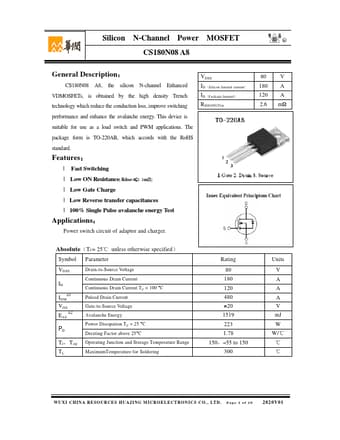

Preview of CS180N08A8 PDF

Datasheet Details

Part number:

CS180N08A8

Manufacturer:

CR Micro

File Size:

611.45 KB

Description:

Silicon n-channel power mosfet.
