CS18N20A4R - Silicon N-Channel Power MOSFET

CR Micro

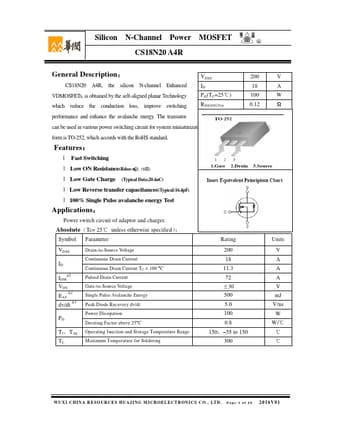

CS18N20A4R Datasheet Preview — Preview of CS18N20A4R PDF

Datasheet Details

Part number	CS18N20A4R
Manufacturer	CR Micro
File Size	405.57 KB
Description	Silicon N-Channel Power MOSFET
Datasheet	CS18N20A4R-CRMicro.pdf

CS18N20A4R Product details

Description

CS18N20 A4R, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching VDSS ID PD(TC=25℃) RDS(ON)Typ 200 V 18 A 100 W 0.12 Ω performance and enhance the avalanche energy.The transistor can be used in various power switching circuit for system miniaturization and higher efficiency.The package form is TO-252, which accords with the RoHS standard.

Features

l Fast Switching l Low ON Resistance(Rdson≤0.18Ω) l Low Gate Charge (Typical Data:20.4nC) l Low Reverse transfer capacitances(Typical:16.4pF) l 100% Single Pulse avalanche energy Test.
