CS18N50A8R

Silicon N-Channel Power MOSFET

CS18N50A8R Features

* l Fast Switching l Low ON Resistance(Rdson≤0.35Ω) l Low Gate Charge (Typical Data: 45.7nC) l Low Reverse transfer capacitances(Typical:5.97 pF) l 100% Single Pulse avalanche energy Test Applications: Power switch circuit of adaptor and charger. Absolute(Tj= 25℃ unless otherwise specified): Symbol

CS18N50A8R General Description

CS18N50 A8R, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various power switching circuit for system miniaturization a.

CS18N50A8R Datasheet (403.64 KB)

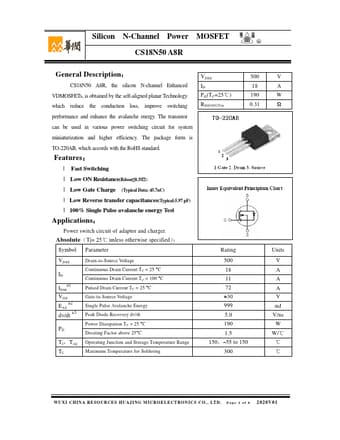

Preview of CS18N50A8R PDF

Datasheet Details

Part number:

CS18N50A8R

Manufacturer:

CR Micro

File Size:

403.64 KB

Description:

Silicon n-channel power mosfet.
