CS180N06A8

Silicon N-Channel Power MOSFET

CS180N06A8 Features

* VDSS ID（Silicon limited current） PD(TC=25℃) RDS(ON)Typ 60 V 180 A 245 W 3.2 mΩ

* Fast Switching

* Low ON Resistance(Rdson≤4mΩ)

* Low Gate Charge (Typical Data:86.2nC)

* Low Reverse transfer capacitances(Typical:342pF)

* 100% Single Pulse avalanche energy Test Applications：

CS180N06A8 General Description

CS180N06 A8, the silicon N-channel Enhanced VDMOSFETs, is obtained by advanced Trench Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various power switching circuit for system miniaturization and higher effi.

CS180N06A8 Datasheet (585.29 KB)

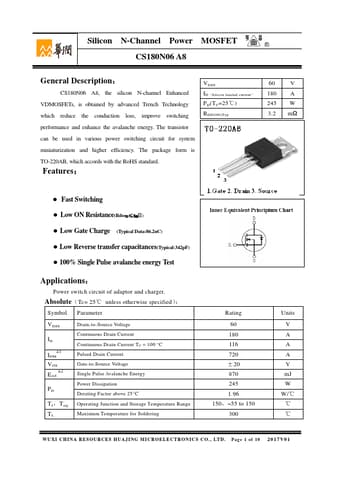

Preview of CS180N06A8 PDF

Datasheet Details

Part number:

CS180N06A8

Manufacturer:

CR Micro

File Size:

585.29 KB

Description:

Silicon n-channel power mosfet.
