CS18N20A3R

Silicon N-Channel Power MOSFET

CR Micro

CS18N20A3R Features

* Fast Switching

* Low ON Resistance(Rdson≤0.18Ω)

* Low Gate Charge (Typical Data:20.4nC)

* Low Reverse transfer capacitances(Typical:16.4pF)

* 100% Single Pulse avalanche energy Test Applications： Power switch circuit of adaptor and charger. Absolute（Tc= 25℃ unless otherw

CS18N20A3R General Description

CS18N20 A3R, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching VDSS ID PD(TC=25℃) RDS(ON)Typ 200 V 18 A 100 W 0.12 Ω performance and enhance the avalanche energy. The transistor can be used in v.

CS18N20A3R Datasheet (519.09 KB)

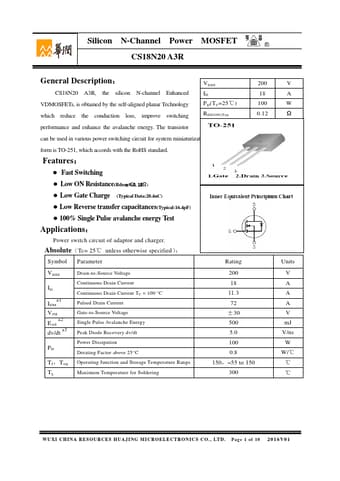

CS18N20A3R Datasheet Preview — Preview of CS18N20A3R PDF

Datasheet Details

Part number:

CS18N20A3R

Manufacturer:

CR Micro

File Size:

519.09 KB

Description:

Silicon n-channel power mosfet.
