CS18N20A4RZ-G Datasheet, Mosfet, CR Micro

CS18N20A4RZ-G Features

  • Mosfet
  • Fast Switching
  • Low ON Resistance(Rdson≤0.18Ω)
  • Low Gate Charge (Typical Data:20.4nC)
  • Low Reverse transfer capacitances(Typical:16.4pF)

PDF File Details

Part number:

CS18N20A4RZ-G

Manufacturer:

CR Micro

File Size:

621.90kb

Download:

📄 Datasheet

Description:

Silicon n-channel power mosfet. CS18N20 A4RZ-G, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the cond

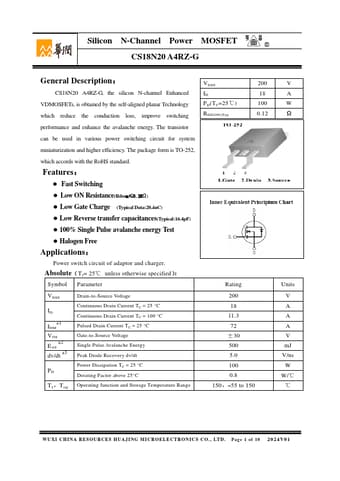

Datasheet Preview: CS18N20A4RZ-G 📥 Download PDF (621.90kb)
Page 2 of CS18N20A4RZ-G Page 3 of CS18N20A4RZ-G

CS18N20A4RZ-G Application

  • Applications Power switch circuit of adaptor and charger. Absolute(TJ= 25℃ unless otherwise specified): Symbol Parameter VDSS ID IDMa1 VGS EAS a2
