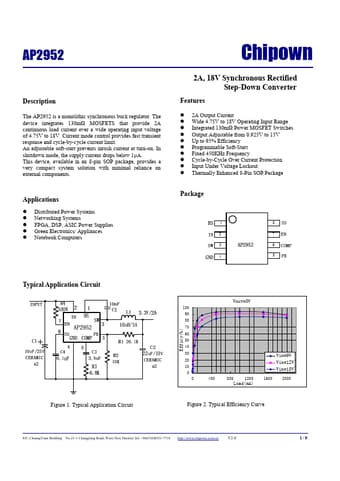

Part number:
AP2952
Manufacturer:
Chipown
File Size:
465.22 KB
Description:
18v synchronous rectified step-down converter.
* 2A Output Current
* Wide 4.75V to 18V Operating Input Range
* Integrated 130mΩ Power MOSFET Switches
* Output Adjustable from 0.925V to 15V
* Up to 95% Efficiency
* Programmable Soft-Start
* Fixed 450KHz Frequency
* Cycle-by-Cycle Over Current Protection
* Input
AP2952
Chipown
465.22 KB
18v synchronous rectified step-down converter.
