AP2952A 18V Synchronous Rectified Step-Down Converter

The AP2952A is a monolithic synchronous buck regulator. The device integrates 130mΩ MOSFETS that provide 2A continuous load current over a wide operating input voltage of 4.75V to 18V. Current mode control provides fast transient response and cycle-by-cycle current limit. An adjustable soft-start pr.

AP2952A Features

* 2A Output Current

* Wide 4.75V to 18V Operating Input Range

* Integrated 130mΩ Power MOSFET Switches

* Output Adjustable from 0.925V to 15V

* Up to 95% Efficiency

* Programmable Soft-Start

* Fixed 450KHz Frequency

* Cycle-by-Cycle Over Current Protection

* Input

AP2952A-Chipown.pdf

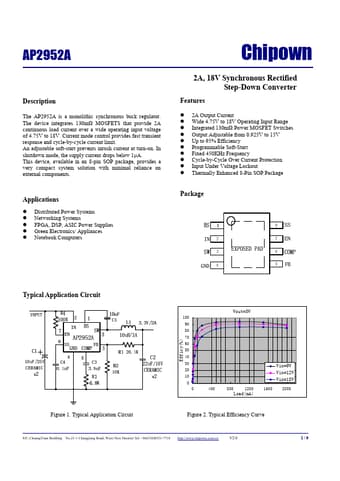

AP2952A Datasheet Preview — Preview of AP2952A PDF

Datasheet Details

Part number:

AP2952A

Manufacturer:

Chipown

File Size:

415.52 KB

Description:

18v synchronous rectified step-down converter.
