ID2006 - High-Side & Low-Side Gate Driver

Datasheet Summary

Description

The ID2006 is a high voltage, high speed power MOSFET driver with independent high and low side referenced output channels based on P_SUB P_EPI process.

The floating channel can be used to drive an N-channel power MOSFET in the high side configuration which operates up to 200 V.

Features

  • Fully operational to+200 V.
  • 3.3V and 5V input logic compatible.
  • dV/dt Immunity ±50 V/nsec.
  • Gate drive supply range from 6 V to 18 V.
  • Typically Source / Sink current capability 1 A/1 A.
  • Typically -9V negative Vs bias capability Package/Order Information.

📥 Download Datasheet

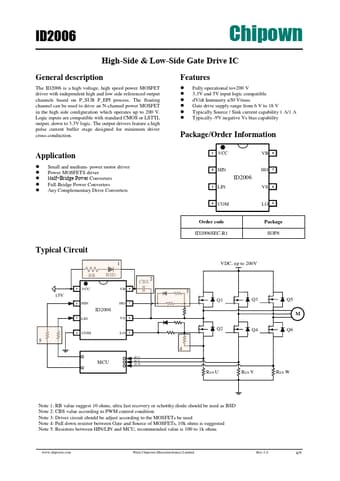

Datasheet preview – ID2006
