ID2304D - High Side & Low Side Gate Driver

Product Overview

Chipown

📥 Download Datasheet

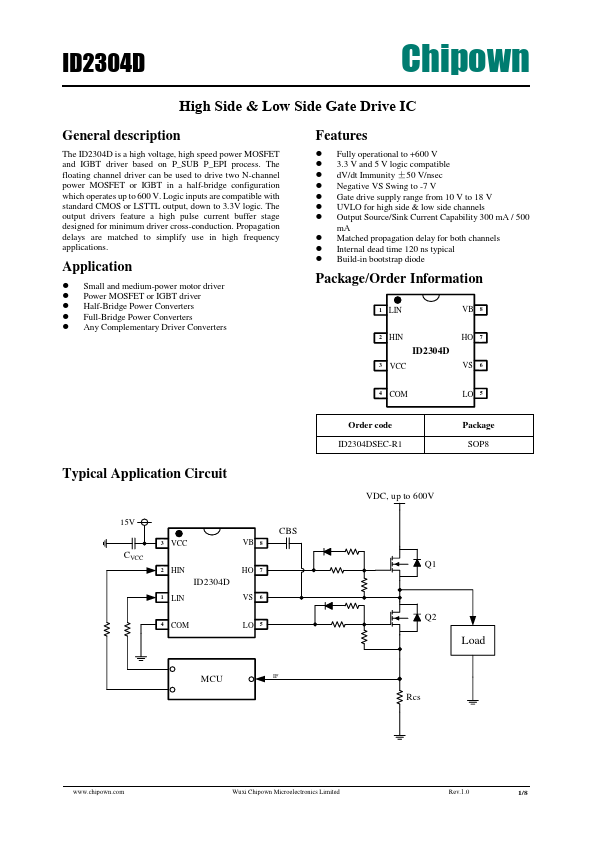

ID2304D High Side & Low Side Gate Driver by Chipown - Datasheet Preview — Datasheet preview – ID2304D

Datasheet Details

Part number	ID2304D
Manufacturer	Chipown
File Size	424.90 KB
Description	High Side & Low Side Gate Driver
Datasheet	ID2304D Datasheet

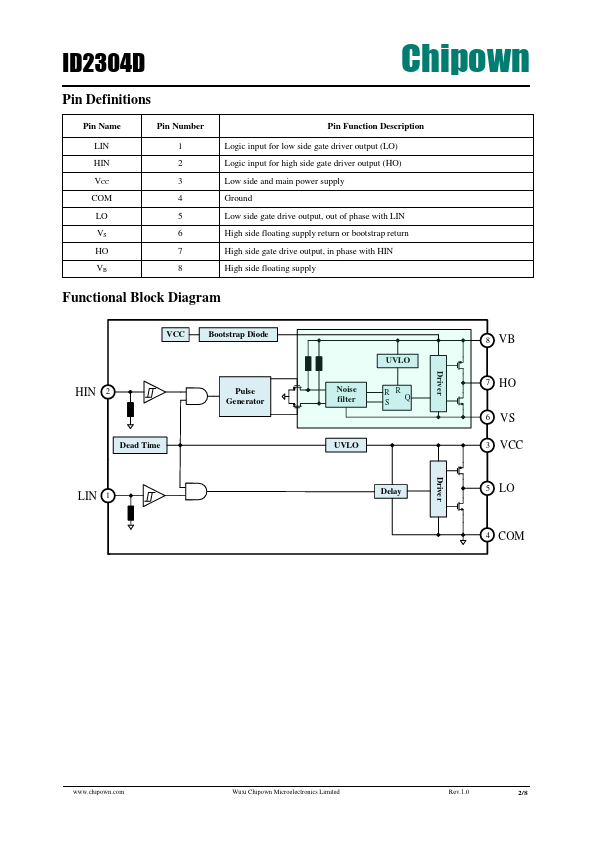

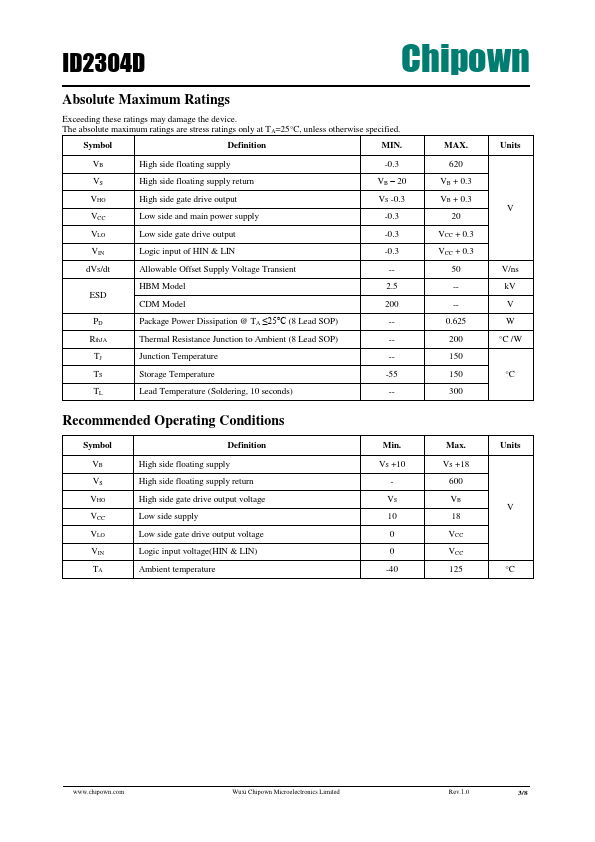

Additional preview pages of the ID2304D datasheet.

Product details

Description

The ID2304D is a high voltage, high speed power MOSFET and IGBT driver based on P_SUB P_EPI process.

Features

Fully operational to +600 V.
3.3 V and 5 V logic compatible.
dV/dt Immunity ±50 V/nsec.
Negative VS Swing to -7 V.
Gate drive supply range from 10 V to 18 V.
UVLO for high side & low side channels.
Output Source/Sink Current Capability 300 mA / 500 mA.
Matched propagation delay for both channels.
Internal dead time 120 ns typical.
Build-in bootstrap diode Package/Order Information 1 LIN VB 8 2 HIN ID2304D 3 VCC HO 7 VS 6 4 COM LO 5 Typica.
