ID2005 - High-Side & Low-Side Gate Driver

Datasheet Summary

Description

The ID2005 is a high voltage, high speed power MOSFET driver with independent high and low side referenced output channels based on P_SUB P_EPI process.

The floating channel can be used to drive an N-channel power MOSFET in the high side configuration which operates up to 200 V.

Features

  •  Fully operational to +200 V  3.3 V input logic compatible  dV/dt Immunity ±50 V/nsec  Gate drive supply range from 6 V to 18 V  Typically output Source/Sink current capability 1A/1A  Typically -9V negative Vs bias capability.

📥 Download Datasheet

Datasheet preview – ID2005

Datasheet Details

Part number ID2005
Manufacturer IDRIVER
File Size 553.30 KB
Description High-Side & Low-Side Gate Driver
Datasheet download datasheet ID2005 Datasheet
Additional preview pages of the ID2005 datasheet.

📁 Similar Datasheet

  • ID200 - SILICON CONTROLLED RECTIFIERS (Digitron Semiconductors)
  • ID200 - SCR (Microsemi)
  • ID2006 - High-Side & Low-Side Gate Driver (Chipown)
  • ID201 - SILICON CONTROLLED RECTIFIERS (Digitron Semiconductors)
  • ID201 - SCR (Microsemi)
  • ID202 - SILICON CONTROLLED RECTIFIERS (Digitron Semiconductors)
  • ID202 - SCR (Microsemi)
  • ID203 - SILICON CONTROLLED RECTIFIERS (Digitron Semiconductors)
  • ID203 - SCR (Microsemi)
  • ID20FFX60U1S - IPM (STARPOWER)
Other Datasheets by IDRIVER
  • ID2103 - High Side & Low Side Gate Driver
  • ID2206D - High Side & Low Side Gate Driver

Full PDF Text Transcription

Click to expand full text

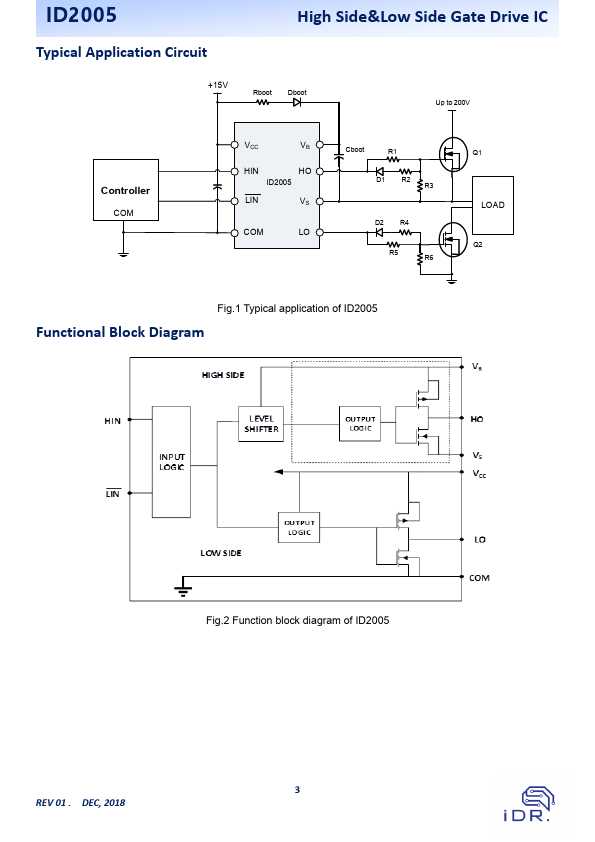

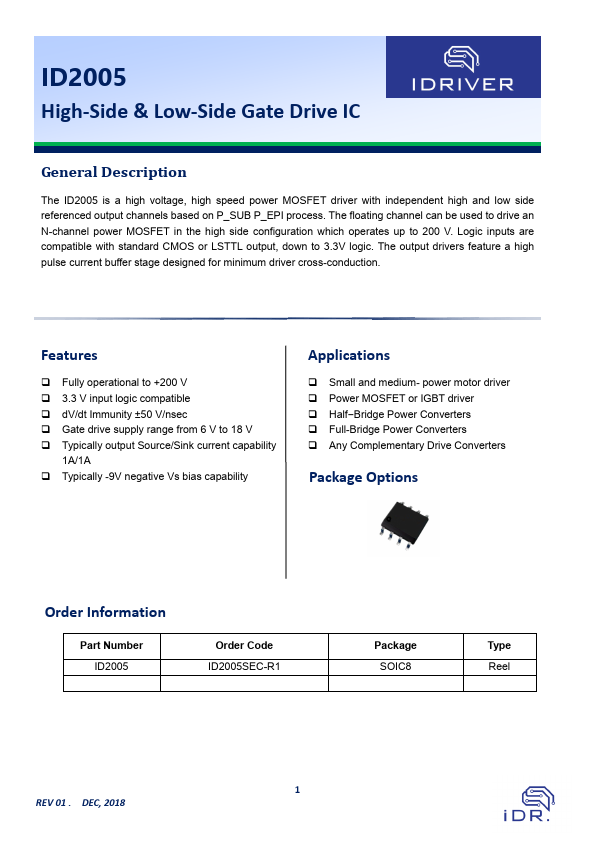

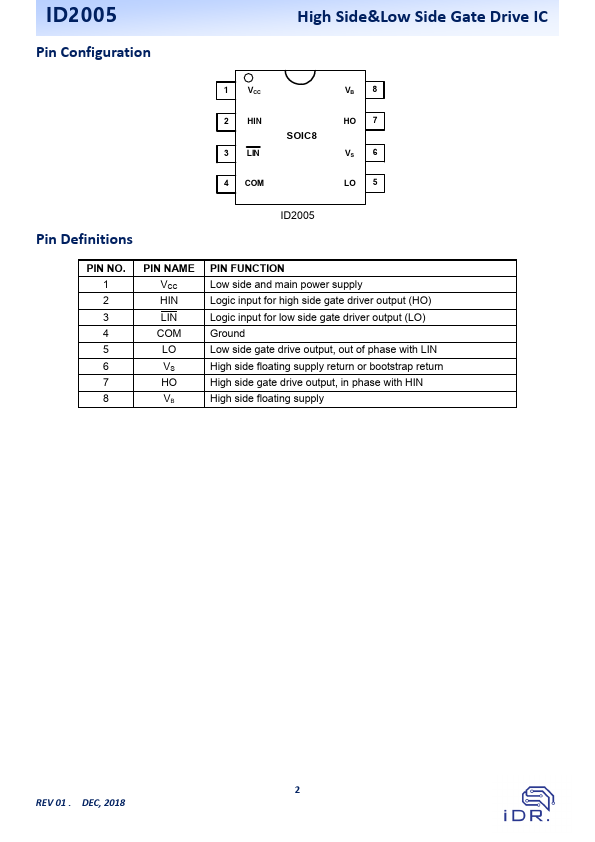

ID2005 High-Side & Low-Side Gate Drive IC General Description The ID2005 is a high voltage, high speed power MOSFET driver with independent high and low side referenced output channels based on P_SUB P_EPI process. The floating channel can be used to drive an N-channel power MOSFET in the high side configuration which operates up to 200 V. Logic inputs are compatible with standard CMOS or LSTTL output, down to 3.3V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Features  Fully operational to +200 V  3.
