ID2103 High Side & Low Side Gate Driver

ID2103 Description

ID2103 High Side & Low Side Gate Drive IC General .
The ID2103 is a high voltage, high speed power MOSFET and IGBT driver based on P_SUB P_EPI process.

ID2103 Features

*  Fully operational to +600 V  3.3 V logic compatible  dV/dt Immunity ±50 V/nsec  Floating channel designed for bootstrap operation  Gate drive supply range from 10 V to 20 V  UVLO for low side channel  Output Source / Sink Current Capability 210 mA / 360mA  -5V negative Vs ability  Matched

📥 Download Datasheet

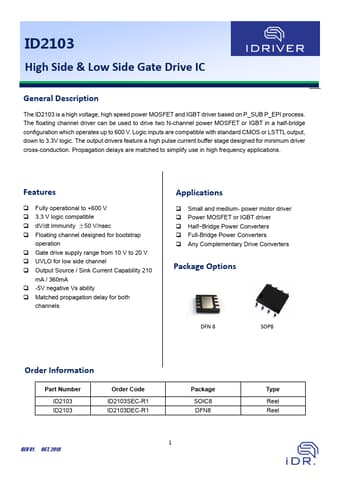

Preview of ID2103 PDF

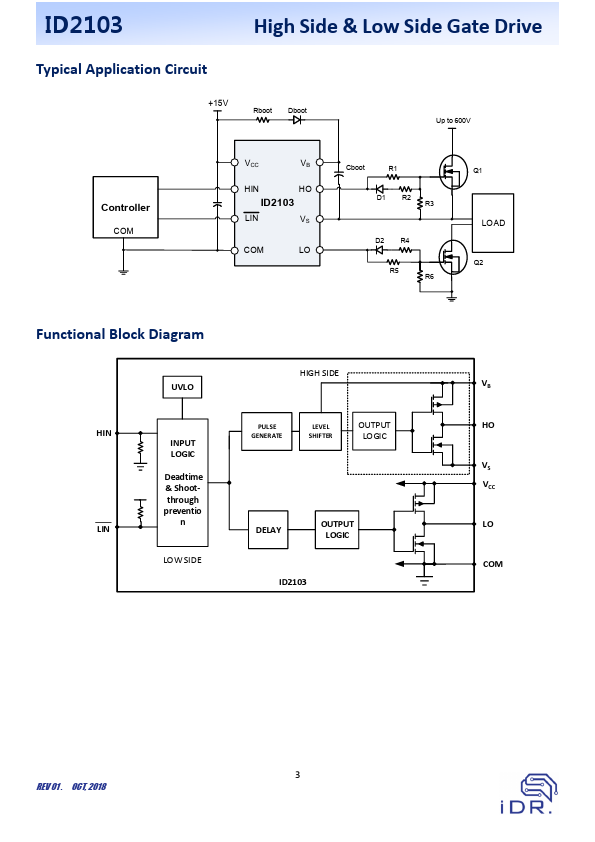

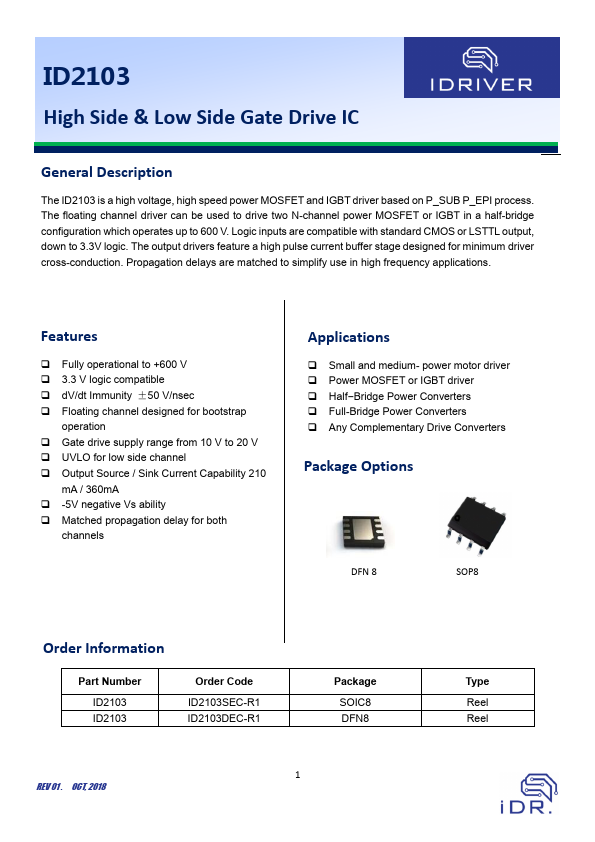

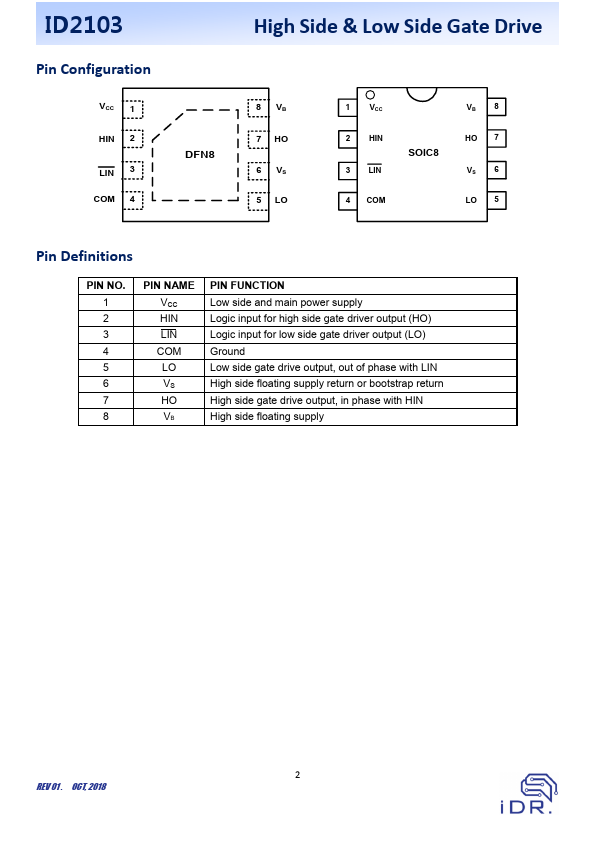

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ID2103
Manufacturer
IDRIVER
File Size
1.10 MB
Datasheet
ID2103-IDRIVER.pdf
Description
High Side & Low Side Gate Driver
