ID7U603 Datasheet - Chipown

High Voltage Half Bridge Gate Driver

ID7U603 Features

* Operation to +600 V

* Typically 210 mA/360 mA Source/Sink current

* 5 V and 3.3 V input logic compatible

* dV/dt Immunity ±50 V/nsec

* Gate drive supply range from 10 V to 20 V

* UVLO for VCC and VBS

* Cross-conduction prevention logic with 520ns internal fixed Dead tim

ID7U603 General Description

The ID7U603 is a high voltage, high speed power MOSFET and IGBT driver based on P_sub P_epi process. The floating channel driver can be used to drive two N-channel power MOSFETs or IGBTs in a half-bridge configuration which operates up to 600V. Logic inputs are compatible with standard CMOS or LSTTL.

ID7U603 Datasheet (496.31 KB)

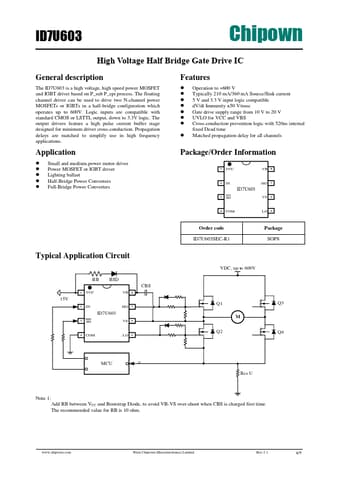

Preview of ID7U603 PDF

Datasheet Details

Part number:

ID7U603

Manufacturer:

Chipown

File Size:

496.31 KB

Description:

High voltage half bridge gate driver.
