ID7T6036 Datasheet - IDRIVER

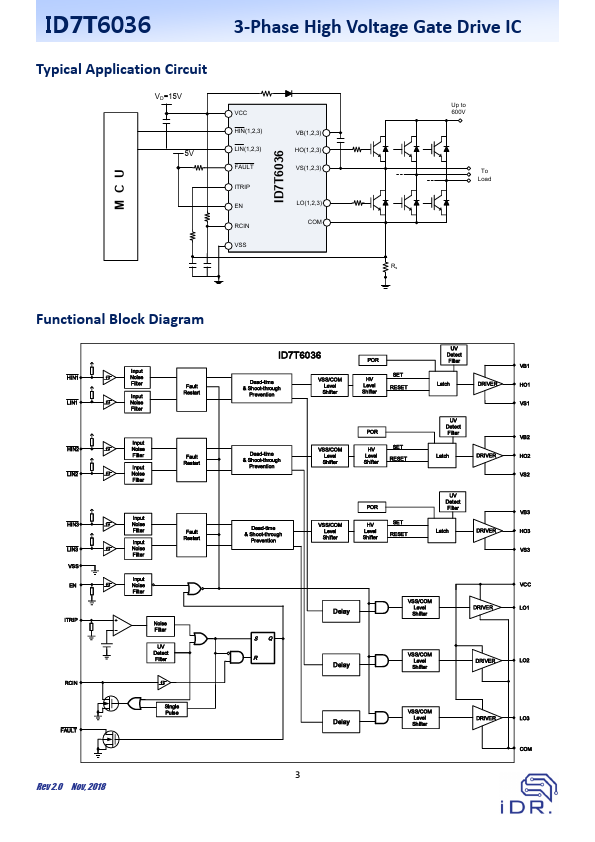

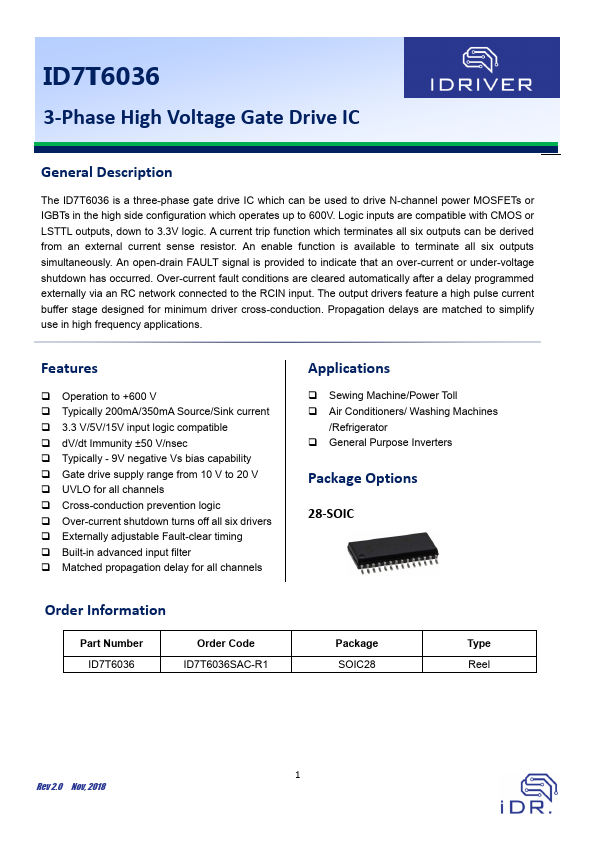

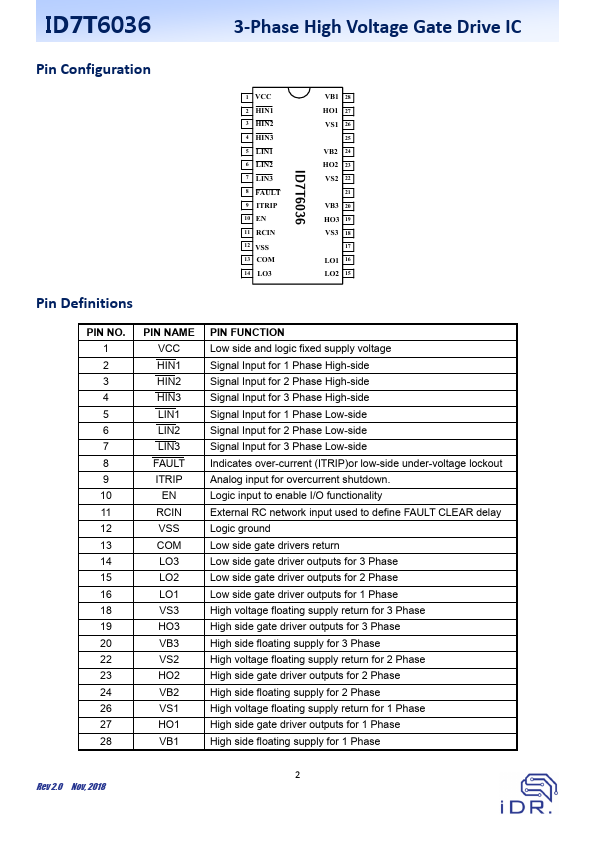

ID7T6036 - 3-Phase High Voltage Gate Driver

The ID7T6036 is a three-phase gate drive IC which can be used to drive N-channel power MOSFETs or IGBTs in the high side configuration which operates up to 600V.

Logic inputs are compatible with CMOS or LSTTL outputs, down to 3.3V logic.

A current trip function which terminates all six outputs can b

ID7T6036 Features

*  Operation to +600 V  Typically 200mA/350mA Source/Sink current  3.3 V/5V/15V input logic compatible  dV/dt Immunity ±50 V/nsec  Typically - 9V negative Vs bias capability  Gate drive supply range from 10 V to 20 V  UVLO for all channels  Cross-conduction prevention logic  Over-current shut

ID7T6036-IDRIVER.pdf

Preview of ID7T6036 PDF
ID7T6036 Datasheet Preview Page 2 ID7T6036 Datasheet Preview Page 3

Datasheet Details

Part number:

ID7T6036

Manufacturer:

IDRIVER

File Size:

890.77 KB

Description:

3-phase high voltage gate driver.
