ID7T0610AD - 3-phase Gate Driver

ID7T0610AD Description

ID7T0610AD 3-phase Gate Driver integrated with LDO hh General .
The ID7T0610AD is a gate driver IC designed for three phase brushless DC motor driver applications.

ID7T0610AD Features

* include deadtime for over-shoot prevention, and under voltage lockout. The ID7T0610AD is available in wafer level. Features  Input voltage range from 8V to 13.5V  5V Low-drop regulator supply  UVLO protection  Built in 100ns dead-time to prevent cross- conduction  Built in bootstrap diode for

📥 Download Datasheet

Preview of ID7T0610AD PDF

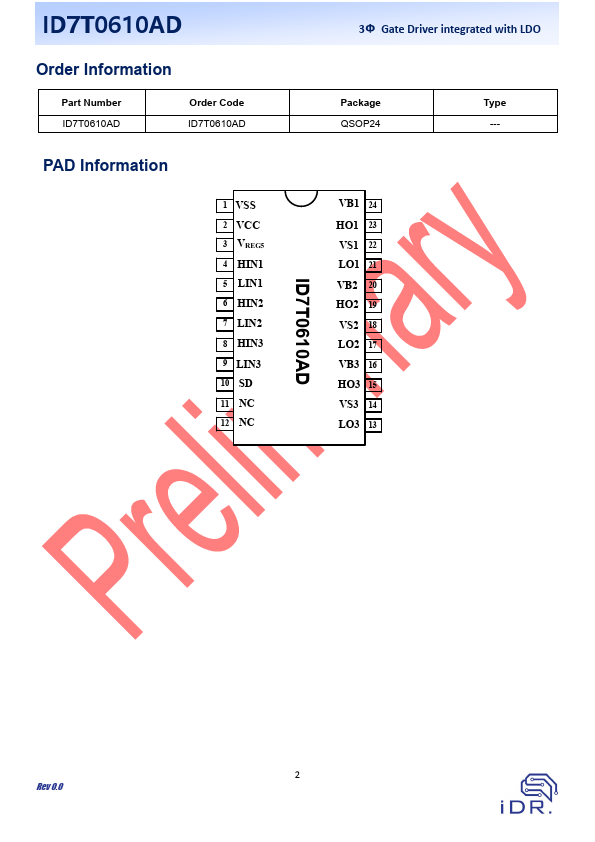

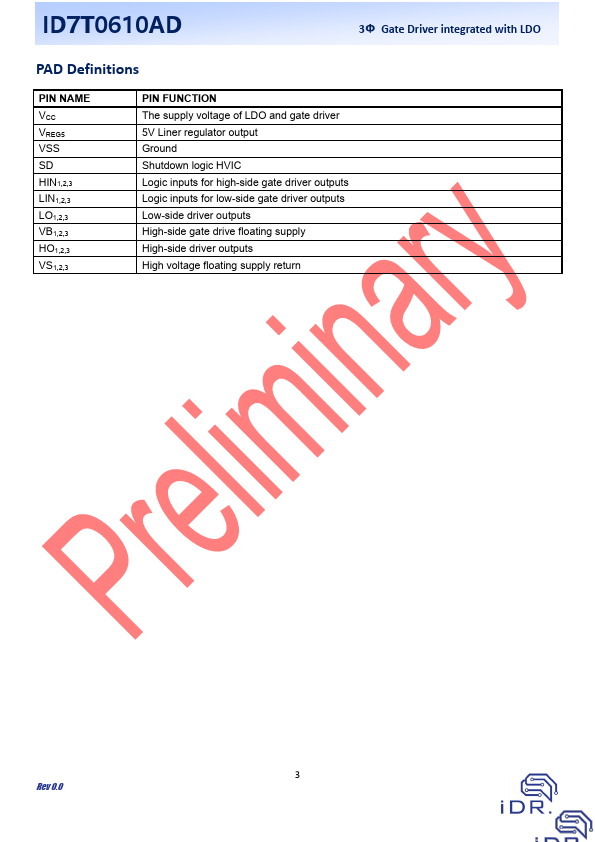

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ID7T0610AD
Manufacturer
IDRIVER
File Size
640.59 KB
Datasheet
ID7T0610AD-IDRIVER.pdf
Description
3-phase Gate Driver
