CH7101B

HDMI to VGA Converter

CH7101B General Description

* * * HDMI Receiver compliant with HDMI 1.4 specification Analog RGB output for VGA with Triple 9-bit DAC up to 200MHz pixel rate. Sync signals can be provided in separated or composite manner. Support VESA and CEA timing standards up to WUXGA 1920x1200@60 Hz with reduced blanking and .

CH7101B Datasheet (146.56 KB)

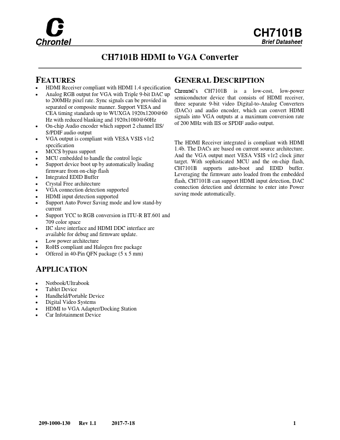

Preview of CH7101B PDF

Datasheet Details

Part number:

CH7101B

Manufacturer:

Chrontel

File Size:

146.56 KB

Description:

Hdmi to vga converter.
