CH7103B

HDMI to YPbPr Converter

CH7103B General Description

* * * * * HDMI Receiver compliant with HDMI 1.4 specification Support HDTV format (YPbPr output) for 480p, 576p, 720p, 1080i and 1080P On-chip Audio encoder which support 2 channel IIS/ S/PDIF audio output MCU embedded to handle the control logic Support device boot up by autom.

CH7103B Datasheet (137.21 KB)

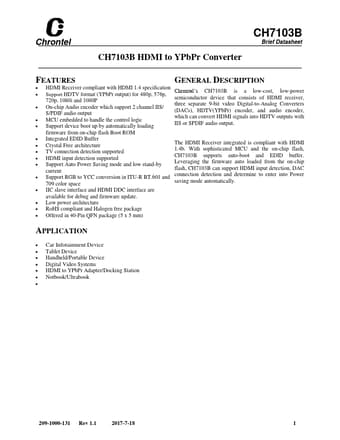

Preview of CH7103B PDF

Datasheet Details

Part number:

CH7103B

Manufacturer:

Chrontel

File Size:

137.21 KB

Description:

Hdmi to ypbpr converter.
