CL-GD5420

VGA Graphics Controller

Cirrus Logic

Image	Manufacturer	Part Number	B2B mpn	Description	Distributor	Stock	Quantity	Price	Buy Now
	Cirrus Logic	CL-GD5420	CL-GD5420-75QC-C	1024 X 768 PIXELS CRT GRPH DSPL CTLR, PQFP160	Quest Components	6	0	$0	🛒 Buy Now

📥 Download PDF (867.09 KB)

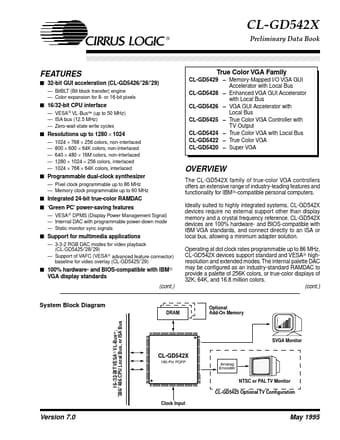

CL-GD5420 Datasheet Preview Page 1 — Preview of CL-GD5420 Datasheet

Datasheet Details

Part number:

CL-GD5420

Manufacturer:

Cirrus Logic

File Size:

867.09 KB

Download:

📄 Download CL-GD5420 Datasheet PDF

Description:

Vga graphics controller.
CL-GD542X Preliminary Data Book FEATURES s 32-bit GUI acceleration (CL-GD5426/’28/’29) * BitBLT (Bi.
t block transfer) engine * Color expansion for 8- or 16-bit pixels s 16/32-bit CPU interface * VESA®.

✔ CL-GD5420 Features

s 32-bit GUI acceleration (CL-GD5426/’28/’29)
BitBLT (Bit block transfer) engine
Color expansion for 8- or 16-bit pixels s 16/32-bit CPU interface
VESA® VL-Bus™ (up

✔ CL-GD5420 Application

3-3-2 RGB DAC modes for video playback (CL-GD5425/’28/’29)
Support of VAFC (VESA® advanced feature conne
