CL-GD5426, CL-GD542x - VGA Graphics Controller

Cirrus Logic

📥 Download Datasheet

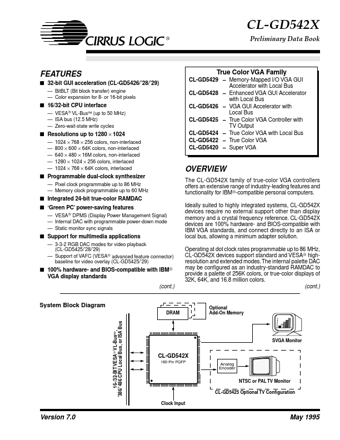

CL-GD5426 Datasheet Preview — This datasheet PDF includes multiple part numbers: CL-GD5426, CL-GD542x. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CL-GD5426, CL-GD542x
Manufacturer	Cirrus Logic
File Size	867.09 KB
Description	VGA Graphics Controller
Datasheet	CL-GD542x_CirrusLogic.pdf
Note	This datasheet PDF includes multiple part numbers: CL-GD5426, CL-GD542x. Please refer to the document for exact specifications by model.

CL-GD5426 Product details

Features

s 32-bit GUI acceleration (CL-GD5426/’28/’29).
BitBLT (Bit block transfer) engine.
Color expansion for 8- or 16-bit pixels s 16/32-bit CPU interface.
VESA® VL-Bus™ (up to 50 MHz).
ISA bus (12.5 MHz).
Zero-wait-state write cycles s Resolutions up to 1280 × 1024.
1024 × 768 × 256 colors, non-interlaced.
800 × 600 × 64K colors, non-interlaced.
640 × 480 × 16M colors, non-interlaced.
1280 × 1024 × 256 colors, interlaced.
