CS4298

SoundFusion Audio/Modem Codec 97

Cirrus Logic

CS4298 Features

* s AC ‘97 2.0 compatible s 20-bit stereo output and 18-bit stereo input codec with fixed 48 kHz sampling rate s 20-bit output and 18-bit input dual modem AFE with fixed 48 kHz sampling rate s Dedicated ADC for handset or speakerphone s Four analog line-level stereo inputs for connection from LINE IN,

CS4298 General Description

The CS4298 is an AC ‘97 compatible Audio/Modem Codec designed for PC multimedia systems. Using the industry leading CrystalClear™ deltasigma and mixed signal technology, the CS4298 is ideal for PC 98-compliant desktop, notebook, and entertainment PCs, where high-quality a.

CS4298 Datasheet (420.13 KB)

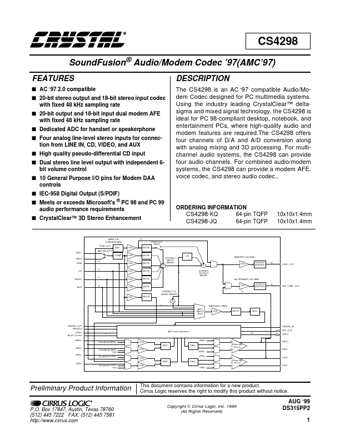

CS4298 Datasheet Preview — Preview of CS4298 PDF

Datasheet Details

Part number:

CS4298

Manufacturer:

Cirrus Logic

File Size:

420.13 KB

Description:

Soundfusion audio/modem codec 97.
