CS4299 Stereo Audio Codec

The CS4299 is an AC ’97 2.1 compatible stereo audio codec designed for PC multimedia systems. Using the industry leading CrystalClear® delta-sigma and mixed signal technology, the CS4299 enables the design of PC 99-compliant desktop, portable, and entertainment PCs. Coupling the CS4299 with a PCI au.

CS4299 Features

* AC ’97 2.1 Compatible

* Industry Leading Mixed Signal Technology

* 20-bit Stereo Digital-to-Analog Converters

* 18-bit Stereo Analog-to-Digital Converters

* Sample Rate Converters

* Four Analog Line-level Stereo Inputs for LINE_IN, CD, VIDEO, and AUX

* Two Analog Line-l

CS4299_CirrusLogic.pdf

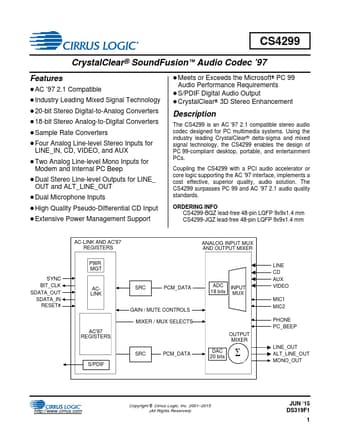

CS4299 Datasheet Preview — Preview of CS4299 PDF

Datasheet Details

Part number:

CS4299

Manufacturer:

Cirrus Logic

File Size:

1.66 MB

Description:

Stereo audio codec.
